And here we go, I organized few parts from the wreckers in Auckland and Wellington. This is an V40 1.9L petrol ECU. The connector is the same as the 2.0T and T4 Turbo’s use. Diesel have different connectors.
Dismantling it…

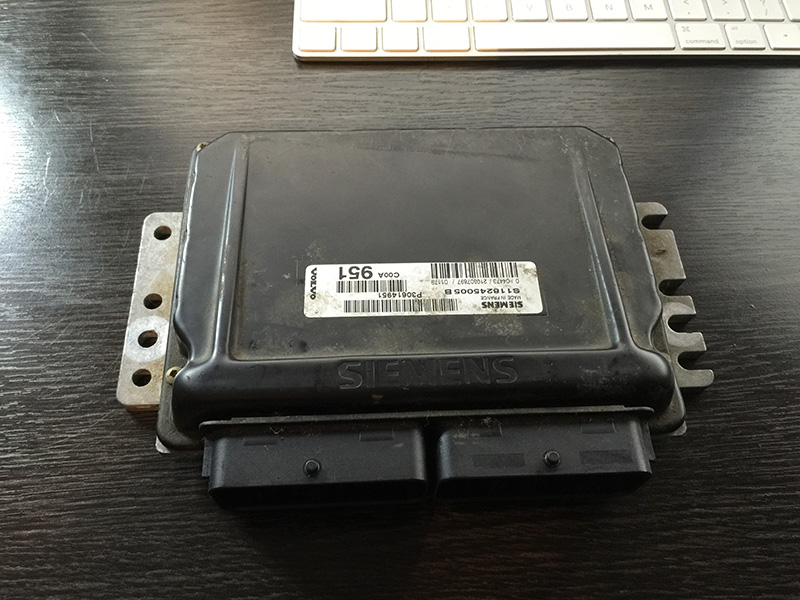

 Volvo V40 ECU Siemens S118245005B |

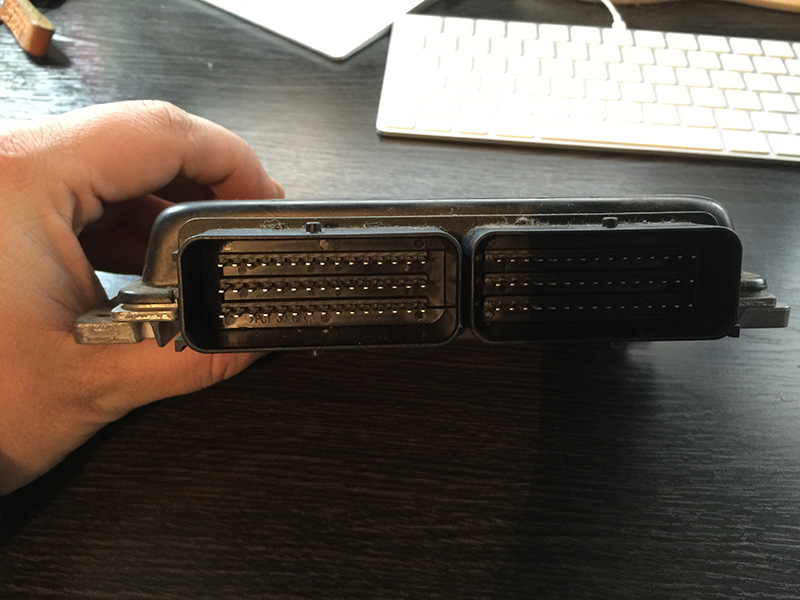

 Volvo V40 ECU Siemens S118245005B Connector |

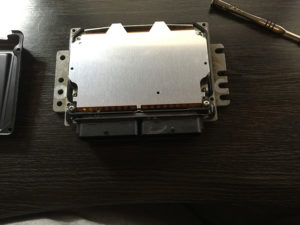

 Volvo V40 ECU Siemens S118245005B open |

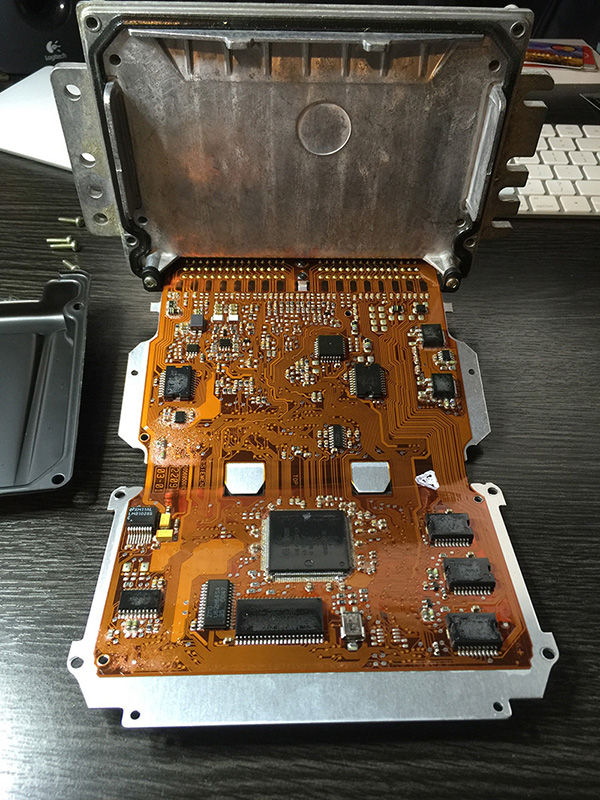

 Volvo V40 ECU Siemens S118245005B opened; inside |

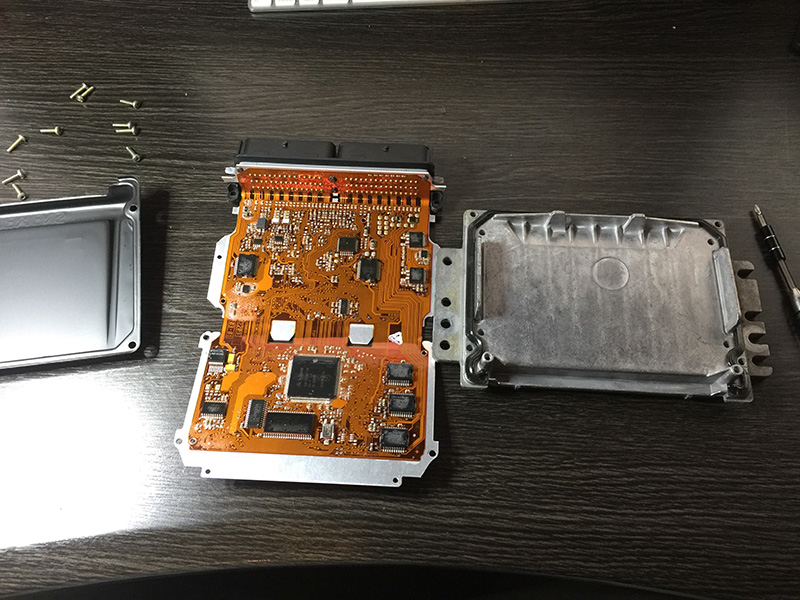

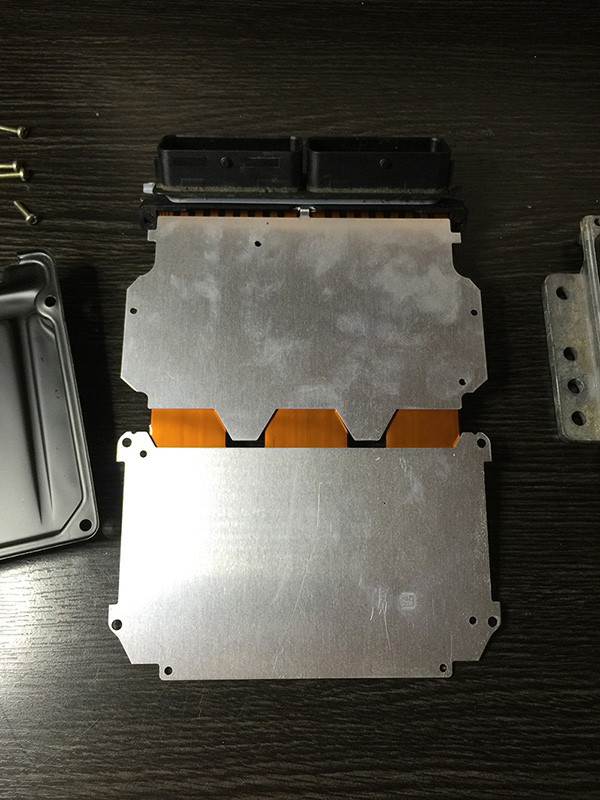

 Volvo V40 ECU Siemens S118245005B opened; parts |
 Volvo V40 ECU Siemens S118245005B board bottom |
The board is actually just a plastic foil with layout and chips glued to it.

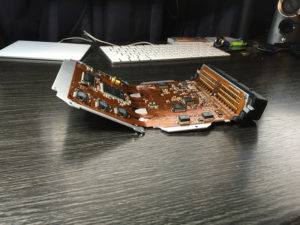

 Volvo V40 ECU Siemens S118245005B opened; board side |

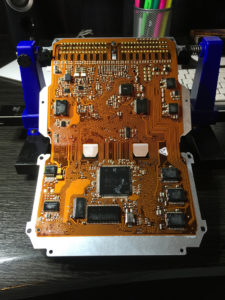

 Volvo V40 ECU Siemens S118245005B board top |

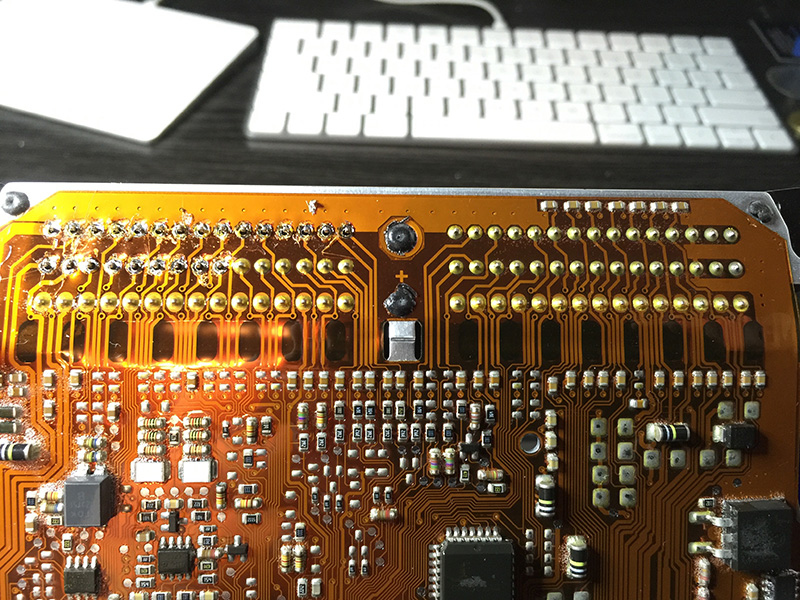

 Volvo V40 ECU Siemens S118245005B connector desoldering |

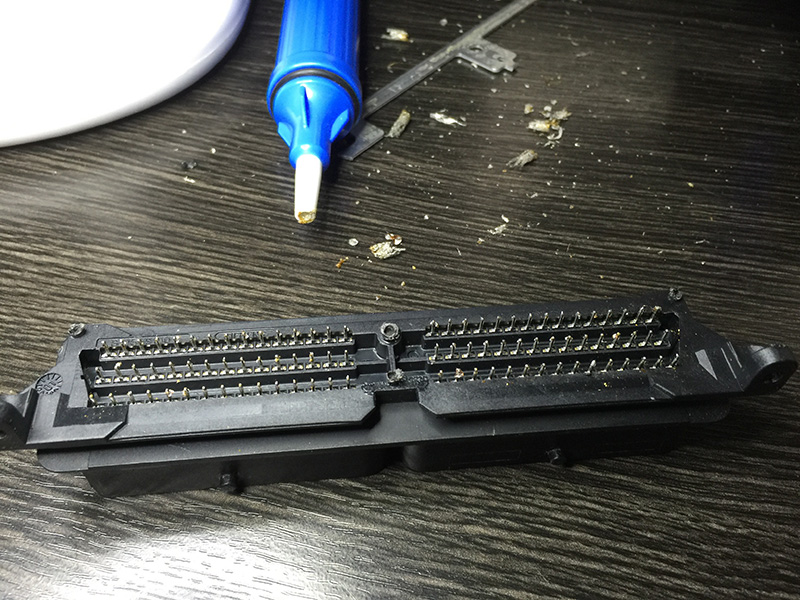

 Volvo V40 ECU Siemens S118245005B connector |
 |
 |

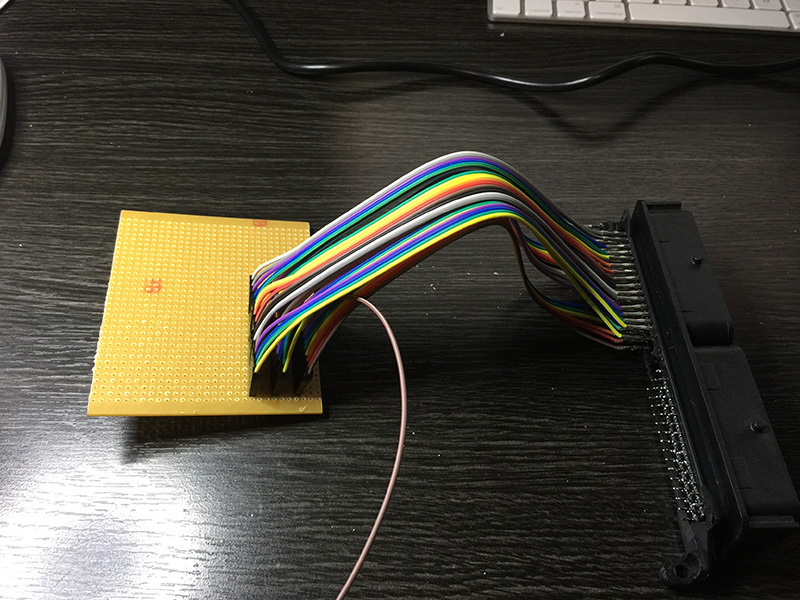

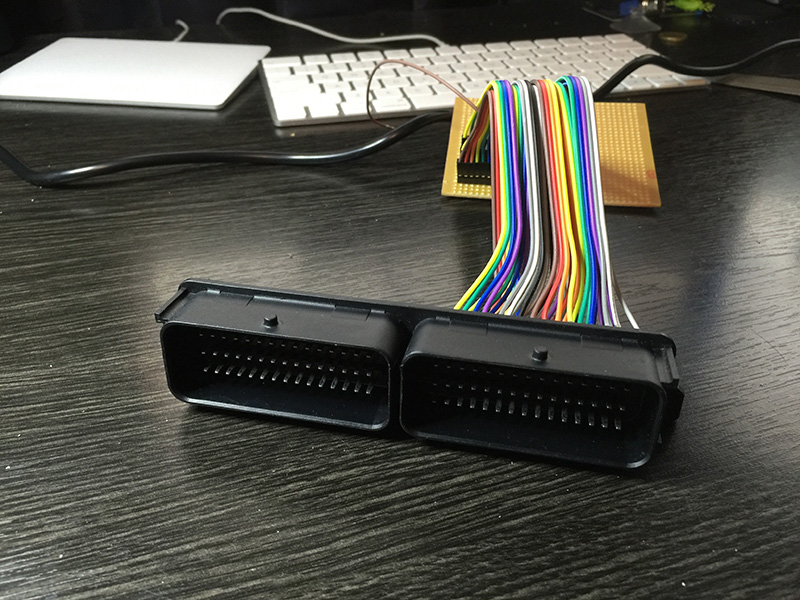

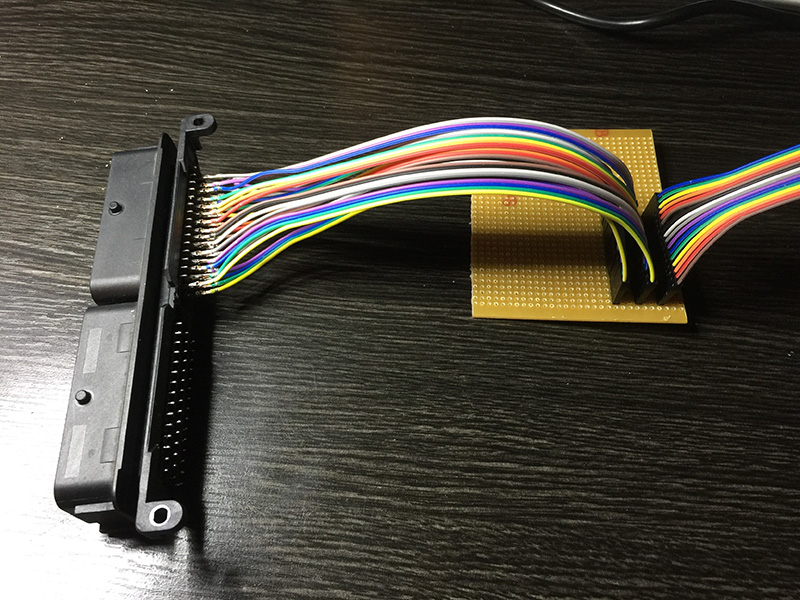

My new little connection toy 🙂
